Button toggle logic to control LED

Button toggle logic to control LED

Main Diagram

Hardware Required

  • PICUNO Microcontroller board
  • 1 × LED
  • 1 × 220Ω resistor
  • 1 × Push Button (4-pin or 2-pin)
  • 1 × 10kΩ resistor (for pull-down)
  • Breadboard
  • Jumper wires
  • USB cable

Description

Pressing the button once will turn ON the LED, and pressing it again will turn it OFF. This is useful when a button needs to act like a switch. We use a pull-down resistor to keep the GPIO pin LOW when the button is not pressed.

Circuit Diagram

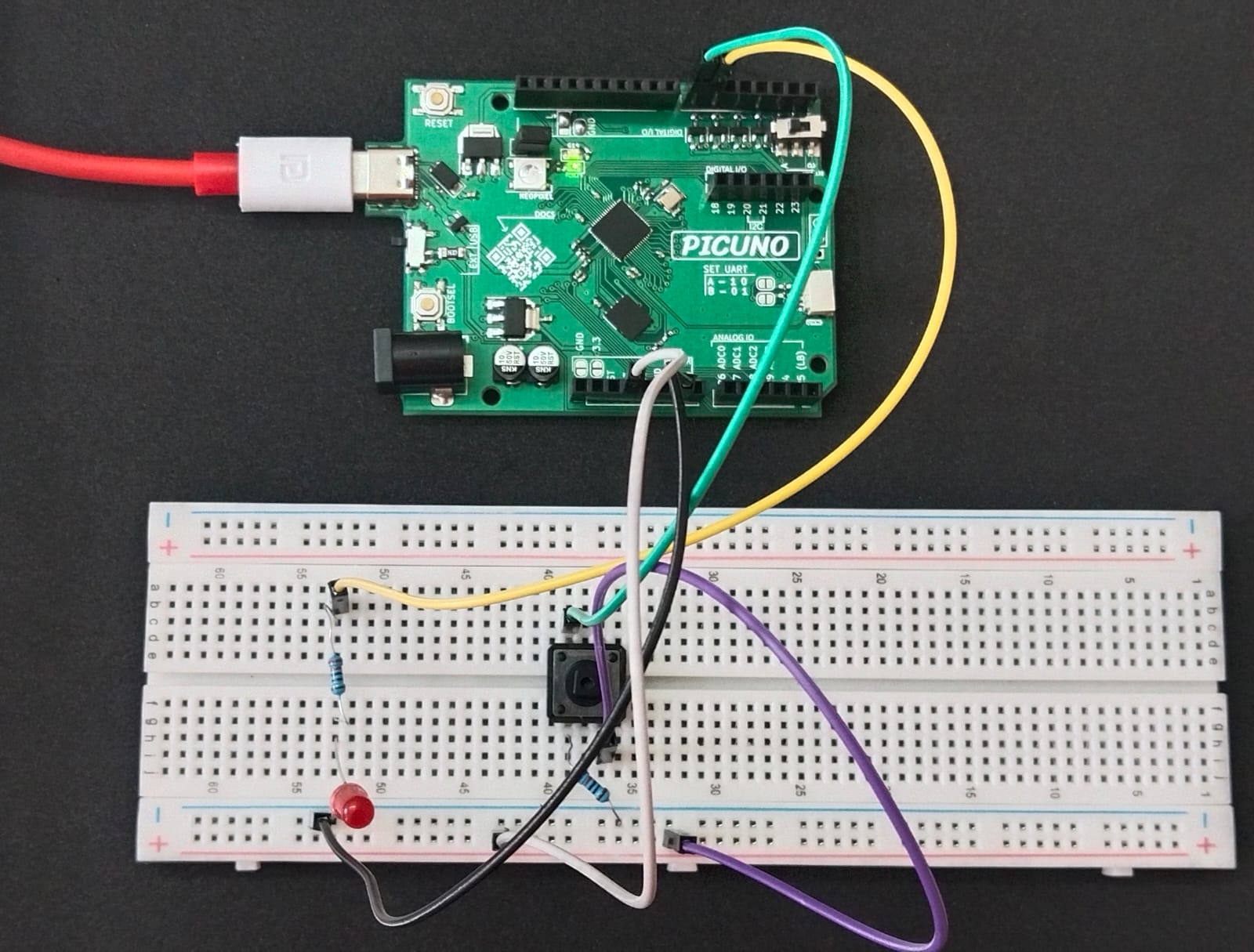

[Fritzing image to be added here]

Circuit

  • Connect the PICUNO board to the computer using a USB cable.
  • Connect the anode (longer leg) of the LED to GPIO 6 through a 220Ω resistor.
  • Connect the cathode (short leg) of the LED to GND.
  • Connect one leg of the push button to 3.3V.
  • Connect the other leg of the button to GPIO 7.
  • Connect one end of the 10kΩ resistor to GPIO 7 and other end to GND.

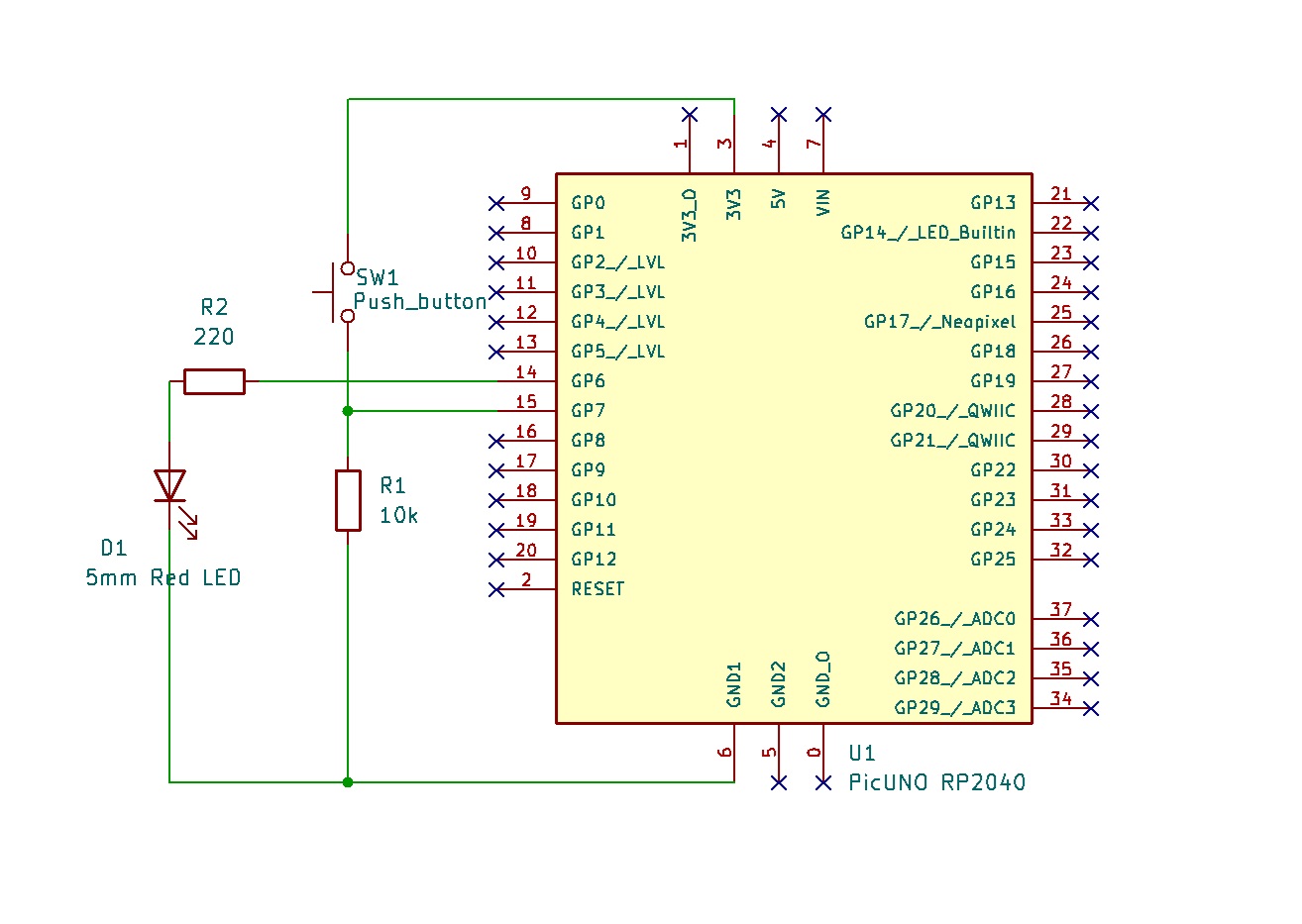

Schematic

Button one side → 3.3V

Other side → GPIO 7

GPIO 7 → 10kΩ → GND

GPIO 6 → 220Ω → LED anode

LED cathode → GND

Code - C

#define LED_PIN 6
#define BUTTON_PIN 7

bool ledState = false;
bool prevButtonState = false;

void setup() {
  pinMode(LED_PIN, OUTPUT);
  pinMode(BUTTON_PIN, INPUT);
}

void loop() {
  bool currentButtonState = digitalRead(BUTTON_PIN);

  if (currentButtonState == HIGH && prevButtonState == LOW) {
    ledState = !ledState;
    digitalWrite(LED_PIN, ledState);
    delay(200); // Debounce delay
  }

  prevButtonState = currentButtonState;
  delay(10);
}
ledState - keeps track of the LED status.

if (current == HIGH && previous == LOW) - Detects rising edge.

ledState = !ledState - Toggles LED state.

digitalWrite(LED_PIN, ledState) - Updates the LED.

delay(200) - Simple debounce logic.

Code - Micropython

from machine import Pin
import time

led = Pin(6, Pin.OUT)
button = Pin(7, Pin.IN)

led_state = False
prev_button_state = 0

while True:
    current_button_state = button.value()

    if current_button_state == 1 and prev_button_state == 0:
        led_state = not led_state
        led.value(led_state)
        time.sleep(0.2)  # Debounce delay

    prev_button_state = current_button_state
    time.sleep(0.01)
led_state = True - Variable to track current LED status (OFF initially).

if current_button_state == 1 and prev_button_state == 0 - Detects button press transition.

led_state = not led_state - Toggles the LED status.

led.value(led_state) - Updates the actual LED output.

time.sleep(0.2) - Adds delay to avoid false triggers due to bouncing.
