μNico

Meet μNico - Your Pen-drive sized companion
Responsive image

Responsive image

POWERED BY RISC-V

At heart is the CH32V003 which is a RISC-V processor capable of performing complex tasks at ease.

Responsive image

USB-HID support

USB-HID support with help of rv003usb by CNLohr. Powered by CH32V003Fun.

Responsive image

Arduino IDE Compatibility

Arduino IDE Compaitibility with the help of Library provided by WCH and 3rd Party libraries by Hobbyists.

Responsive image

On Board LED

In-Built LED that can be chosen on demand depending on output method of choice.

Responsive image

Compact Size

Designed to be compact and sleek, the μNico board is of very minimal dimensions and can be used as a compact microcontroller development board!

Fully Open Source

Responsive image Responsive image Responsive image Responsive image
Fully Open-Source with complete design Files available for one to view and analyse

Technical Specifications

Processor CH32V003
Flash memory (kByte) 256
RAM (kByte) 32
ADC type 12-bit SAR
Number of ADC channels 21, 26
Number of GPIOs 43, 59, 73
UART 5
Number of I2Cs 3
SPI 2

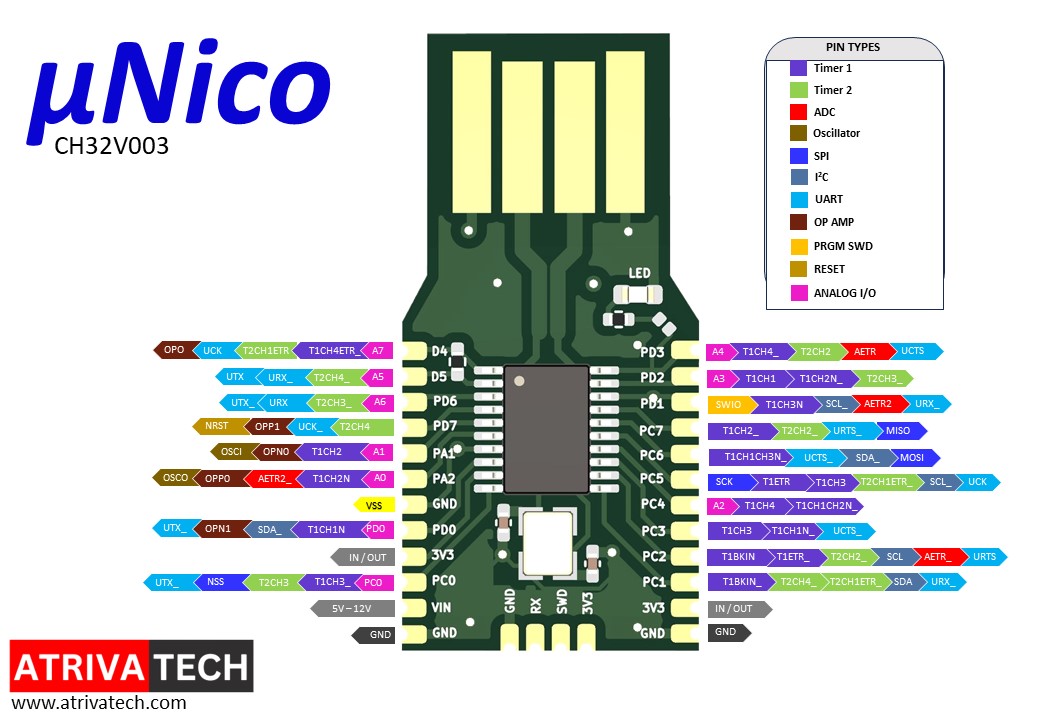

Main Diagram
Diagram Diagram Chip Chip Chip

Technical documentation

Data sheet Munico Datasheet PDF 1 Dec 2024
